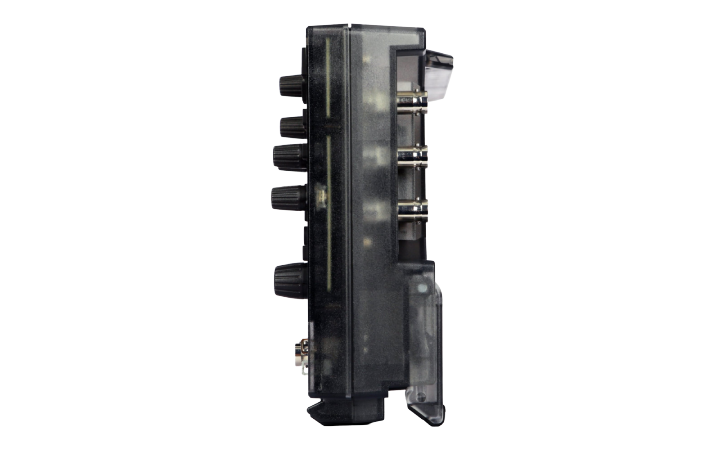

Image 3
All Rigol Oscilloscopes

RIGOL MHO954 Oscilloscope, 500 MHz, 4 GSa/s, 4 CH, 7-inch Display

Now includes NABL Calibration Certificate.
Rs. 158990.00

The RIGOL MHO954 is a 500 MHz mixed-signal oscilloscope engineered for high-speed electronic analysis. With 4 analog channels, optional 16 digital channels, 12-bit resolution, and fast 4 GSa/s sampling, it delivers clear, precise waveform insights ideal for embedded systems, R&D, automotive communication buses, and power electronics debugging..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The RIGOL MHO954 brings together high bandwidth, precision resolution, and mixed-signal flexibility to support demanding engineering applications. Its 12-bit hardware ADC provides significantly improved dynamic range compared to typical 8-bit oscilloscopes, enabling clear visualization of small-amplitude and noise-sensitive signals.

With up to 4 GSa/s sampling and a deep 100 Mpts memory, the MHO954 captures long time-domain events while preserving fine waveform detail. When expanded with the 16-channel logic analyzer option, it becomes a full MSO suitable for analyzing complex embedded designs with synchronized analog and digital visibility.

Its 7-inch capacitive touchscreen enhances usability, while standard decoding for common serial buses makes it easy to monitor microcontroller interfaces, automotive communication buses, and sensor networks. Optional upgrades such as the 2-channel waveform generator and advanced protocol decoding give engineers a scalable, future-ready measurement platform.

  • 500 MHz bandwidth across 4 analog channels

  • 12-bit resolution for high-accuracy signal detail (up to 16-bit in high-res mode)

  • Option to add 16 digital channels with the PLA2216 probe

  • 100 Mpts standard memory depth (expandable to 500 Mpts)

  • Full serial decoding for I²C, SPI, RS232/UART, CAN, and LIN

  • Ultra-fast capture rate for reliable detection of noise, glitches, and fast edges

  • Bandwidth: 500 MHz

  • Channels: 4 analog + 16 digital (optional PLA2216)

  • Vertical Resolution: 12-bit (up to 16-bit in high-res mode)

  • Sampling Rate: Up to 4 GSa/s

  • Memory Depth: 100 Mpts (standard), 500 Mpts (optional)

  • Waveform Capture Rate: Up to 1,000,000 wfms/s (record mode)

  • Vertical Sensitivity: 200 µV/div to 10 V/div

  • Input Impedance: 1 MΩ ±1%, 50 Ω ±1%

  • Display: 7″ capacitive multi-touch (1024×600 px), 256-level intensity

  • Serial Decoding (Standard): I²C, SPI, RS232/UART, CAN, LIN

  • Advanced Features: 2-channel AFG (50/100 MHz optional), Bode plot analysis (with AFG), Web Control

  • Interfaces: USB Host & Device, LAN, HDMI
