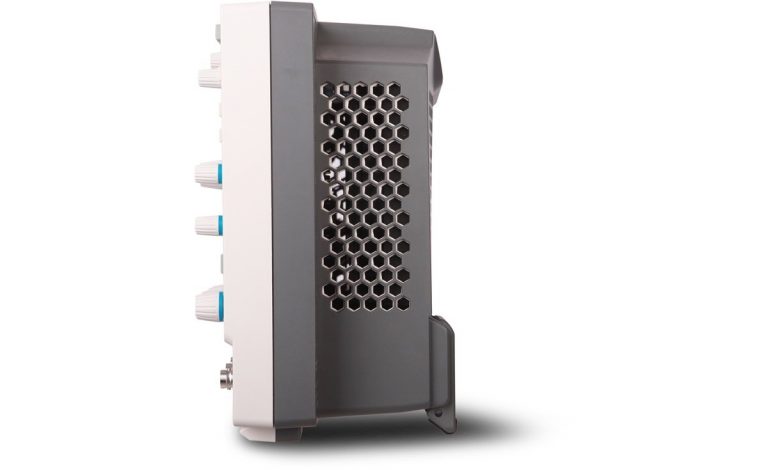

Image 3
All Rigol Oscilloscopes

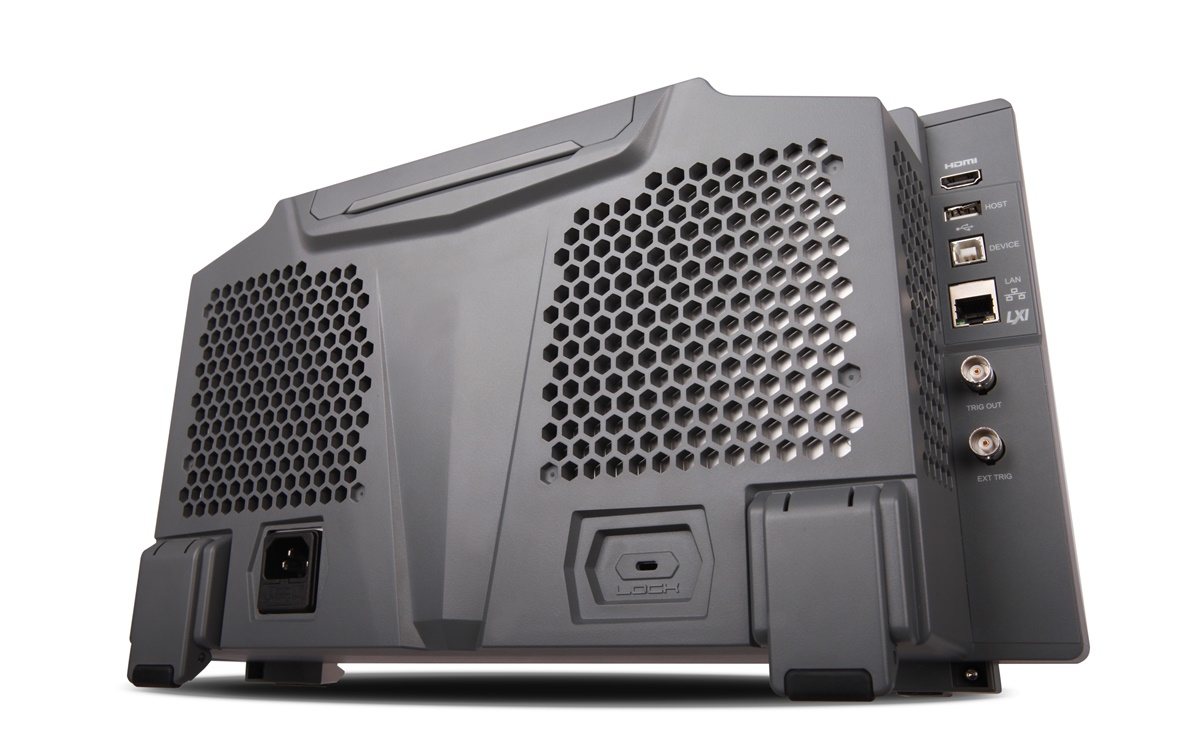

Rigol MSO7024

Rs. 597198.00

Professional 4-channel oscilloscope with 200 MHz bandwidth, 10 GSa/s real-time sampling, and up to 500 Mpts deep memory. Features a high-resolution 10.1” capacitive touchscreen (1024×600), a built-in 16-channel logic analyzer, and is upgradeable to a 2-channel, 25 MHz waveform generator for complete mixed-signal analysis..

  • Detail
  • Special Features
  • Specification

The Rigol MSO7024 is a 4-channel mixed signal oscilloscope purpose-built for modern electronics development, embedded systems, and industrial applications. With a bandwidth of 200 MHz and a real-time sampling rate of 10 GSa/s, it delivers the performance needed to confidently analyze fast, complex signals.

Featuring a built-in 16-channel logic analyzer, the MSO7024 offers seamless mixed-signal analysis—making it perfect for engineers working with microcontrollers, digital interfaces, and communication buses. Equipped with a 10.1” capacitive touch display, engineers can interact with signals intuitively using gestures or traditional knobs.

With memory depths of up to 500 Mpts, engineers can capture long waveform sequences without sacrificing resolution. Its 600,000 wfms/s waveform update rate makes it easy to detect transient and rare signal events.

Combining six instruments in one device, the MSO7024 acts as:

  • A high-speed digital oscilloscope

  • A 16-channel logic analyzer (standard)

  • A 2-channel waveform generator (optional)

  • A digital voltmeter

  • A precision frequency counter

  • A multi-protocol serial decoder

Designed for flexibility and future upgrades, the MSO7024 is a cost-effective and scalable test solution ideal for R&D labs, education, and quality assurance environments.

10.1” Capacitive Touchscreen Interface
Intuitive multi-touch control supports gestures like swipe, pinch-to-zoom, and tap, with knobs and buttons for traditional operation.

UltraVision II Signal Engine
Powered by Rigol’s UltraVision II architecture, it combines deep memory, high update rate, and fast analysis tools in a single, high-performance platform.

10 GSa/s Real-Time Sample Rate
Captures sharp signal edges and fast transients with high fidelity, ideal for debugging high-speed embedded systems and analog circuits.

Integrated 16-Channel Logic Analyzer
Simultaneously observe digital and analog behavior for comprehensive visibility into signal timing, logic states, and bus communications.

600,000 wfms/s Waveform Update Rate
Rapidly identifies rare glitches and irregularities, improving debugging efficiency by reducing missed signal events.

256-Level Color Grading & Persistence
Color-coded waveform intensity highlights signal frequency and recurrence. Adjustable persistence helps in visualizing infrequent anomalies.

Full-Memory Auto Measurement Engine
Measure 41 waveform parameters in real time with full memory access and view up to 10 statistical results for detailed analysis.

Histogram Analysis Tools
Horizontal, vertical, and long-term measurement histograms visualize jitter, noise behavior, and signal stability over time.

Pass/Fail Mask Testing
Use custom masks to automatically detect pass/fail conditions. Ideal for validation, production QA, and compliance testing.

1 Mpts FFT for Spectral Analysis
Explore the frequency domain with high-resolution FFT up to 1 million points. Choose from multiple FFT windows like Blackman, Flattop, and Hanning.

Multi-Bus Protocol Decoding & Triggering
Supports serial protocol decoding for RS232/UART, SPI, I2C, CAN, LIN, FlexRay, and more. Decodes up to 4 buses simultaneously.

Event Search & Navigation Tools
Search captured signals based on user-defined criteria and navigate large memory captures using intuitive markers and tagging tools.

Category Specification
Display 10.1″ Capacitive Multi-Touch Screen
Resolution 1024×600
Analog Channels 4
Digital Channels 16 (Integrated)
Bandwidth 200 MHz
Real-Time Sample Rate Up to 10 GSa/s
Waveform Capture Rate ≥600,000 wfms/s
Standard Memory Depth 100 Mpts (1 CH), 50 Mpts (2 CH), 25 Mpts (4 CH)
Max Memory Depth 500 Mpts (1 CH), 250 Mpts (2 CH), 125 Mpts (4 CH)
Vertical Resolution 8-bit
Input Impedance 1 MΩ ±1%
Vertical Sensitivity 1 mV/div to 10 V/div
FFT Windows Rectangular, Hanning, Hamming, Blackman, Flattop, Triangle
Trigger Modes Auto, Normal, Single
Trigger Types Edge, Pulse, Slope, Pattern, Video, USB, FlexRay, LIN, RS232/UART, I2C, CAN, Nth Edge
Decoding Support RS232/UART, I2C, SPI, CAN
Waveform Generator Upgradeable (Optional Module)
Waveform Generator Channels 2
Max Frequency (Sine) 25 MHz
Sample Rate (Gen) 200 MSa/s
Connectivity USB, LAN, HDMI, USB-GPIB (optional)
Form Factor 410 × 224 × 135 mm
Weight 3.9 kg
