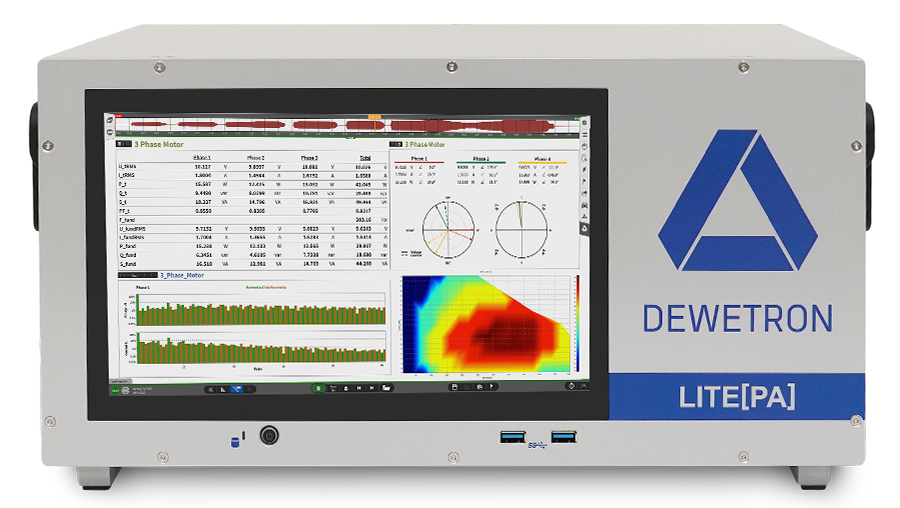

Image 3
Dewetron

LITE[PA]

The LITE[PA] is a turnkey, standard power analyzer offered in 4- or 8-phase configurations. It provides high-precision power measurements with built-in voltage, current, speed, and torque inputs, and is ideal for laboratory, test bench, or end-of-line applications.

  • Detail
  • Special Features
  • Specification

LITE[PA] offers a balance of precision and simplicity for applications that require multi-phase power analysis without complex setup. The system features high-voltage inputs and modular current sensor flexibility, making it suitable for inverter testing, motor performance analysis, and general-purpose power evaluation.

The system includes a full-featured 11.6″ touchscreen running DEWETRON’s OXYGEN software. It allows users to view waveforms, perform FFTs, log real-time power values, visualize motor efficiency maps, and create custom dashboards—all license-free.

Designed for test automation and repeatability, the LITE[PA] includes multiple communication interfaces and supports expansion through XR modules for low-speed sensor integration. All systems are shipped pre-calibrated, ensuring accuracy from the first use.

  • Fixed 4-phase or 8-phase configurations for quick deployment

  • High-voltage inputs up to ±2000 V peak, 5 MHz bandwidth

  • Modular current inputs supporting up to 20 ARMS (±40 A peak)

  • High measurement accuracy of ±0.04% across 0.5 Hz to 1 kHz

  • 24-bit resolution and 2 MS/s sampling per channel

  • 11.6″ touchscreen interface for intuitive, real-time operation

  • Interfaces for automation: CAN, Ethernet (SCPI, XCP, UDP), and USB

  • Supports XR modules for temperature, low-speed voltage or current inputs

  • Compact 19″ rack-mountable 5U housing

  • Delivered with factory calibration; ISO 17025 optional

Specification Details
Power Phases 4 or 8
Voltage Input Range ±2000 V peak
Current Input Range Up to 20 ARMS (±40 A peak)
Accuracy ±0.04% (0.5 Hz to 1 kHz)
Bandwidth Up to 5 MHz
Sampling Rate 2 MS/s per channel
ADC Resolution 24-bit
Display 11.6″ full HD touchscreen
Interfaces CAN, Ethernet (SCPI, XCP, UDP), USB
Expansion Modules XR for temperature, voltage, current (low-speed)
Form Factor 19″ rack, 5U housing
Calibration Factory calibrated; ISO 17025 available
Software OXYGEN included
