NOFFZ

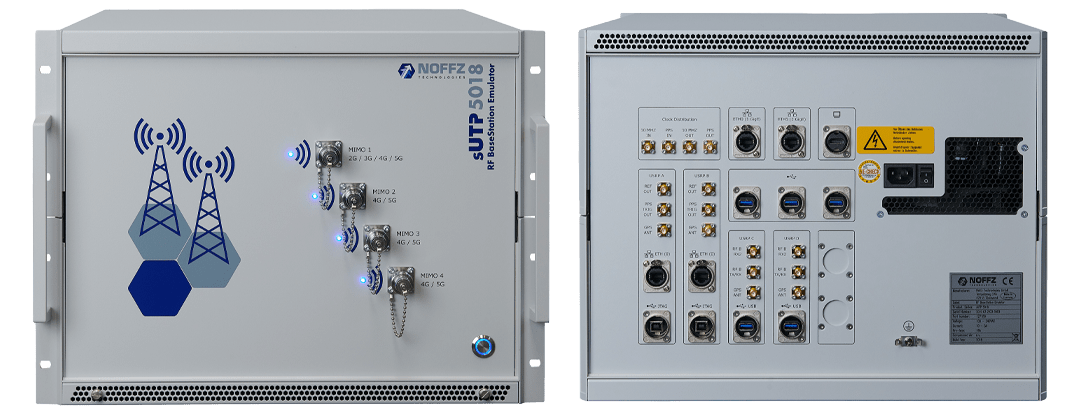

Base Station Emulator sUTP 5018

Now includes NABL Calibration Certificate.

The sUTP 5018 Base Station Emulator enables the testing of wireless devices in a custom mobile network environment, from 2G to 5G. It supports parallel testing of multiple DUTs (devices under test) for voice calls, text, eCall, data traffic, and more, making it ideal for automotive, IoT, and electromobility applications..

  • Detail
  • Special Features
  • Specification

The sUTP 5018 is designed to replicate complex RF scenarios for multi-DUT validation in parallel, improving the throughput and flexibility of testing mobile devices, smart city applications, infotainment systems, and electromobility interfaces. The system is highly scalable, offering coverage for 2G, 3G, 4G, and 5G networks, including advanced Dual-MME configurations.

  • Customizable Cells: Test up to 4 different cells for realistic mobile network simulations

  • Parallel Testing: Supports up to 32 DUTs for simultaneous validation of multi-SIM devices

  • Advanced MIMO: Simulate multiple-input and multiple-output (MIMO) scenarios to test modern wireless interfaces

  • Interactive Configuration: Use BSE Manager software to configure cells and monitor test parameters in real-time

  • Cost Efficiency: Transition from traditional instruments to a Software-Defined Radio (SDR) platform for cost-effective and scalable testing

  • Supports testing across 2G to 5G, including standalone (SA) and non-standalone (NSA) configurations

  • Simulates up to 4 independent cells with MIMO scenarios and handovers

  • Scalable system capable of handling up to 32 cellular modules in parallel

  • Validates voice calls, text messages, eCall, NG eCall, maximum data traffic, Wi-Fi hotspot, VoIP, connected gateway, and more

  • Full support for automotive devices like telecommunications control units (TCUs) and V2X communication modules

  • Facilitates testing of modern e-charging stations with cellular interfaces for real-time availability data transmission

  • BSE Manager software for real-time monitoring of test parameters: signal-to-noise ratio, bit error rate, transmission power, RSSI, logical channels

Feature Specification
Network Coverage 2G, 3G, 4G, 5G (SA, NSA, Dual-MME)
Cell Count Up to 4 independent cells
DUT Connectivity Up to 32 cellular modules in parallel
Testing Parameters Voice calls, text messages, eCall, NG eCall, data traffic, VoIP, Wi-Fi, emergency calls, etc.
Scalability Up to 4 cells, MIMO, and intra-RAT handovers
MIMO Testing Multiple MIMO scenarios
BSE Manager Software Real-time monitoring: SNR, BER, RSSI, transmission power
Supported Devices TCUs, V2X modules, smartphones, IoT, e-charging stations
Platform Software-Defined Radio (SDR)
Test Environment Parallel DUT testing, multi-channel operation
System Flexibility Fully configurable for custom test setups
Optional Features Integration with waveform generation and testing systems
