ONOSOKKI

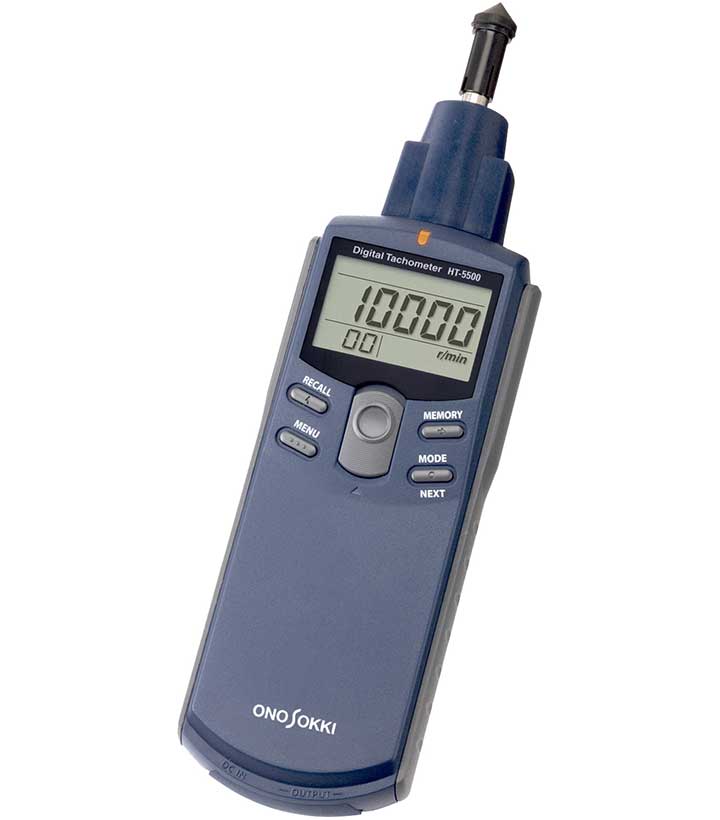

HT-5500 Dual Contact / Non-Contact type Tachometer with both analog and pulse output

The HT-5500 is a versatile handheld tachometer that combines both contact and non-contact measurement methods. It delivers a high-accuracy, wide-ranging performance—from 6 r/min to 99,999 r/min. Equipped with analog and pulse outputs, memory, and measurement of line speed, rotation, period, and cumulative count, it’s built for advanced testing applications..

  • Detail
  • Special Features
  • Specification

The HT-5500 is designed for maximum flexibility across various testing environments. In non-contact mode, it uses a reflective sensor positioned close to the rotating object. For contact mode, a specialized adapter is attached. It handles real-time RPM and line speed monitoring, including cumulative counts and cycle timing.

Its memory functionality allows storing and recalling up to 20 measurements—a valuable feature for comparative testing or batch monitoring. Customizable analog outputs and pulse outputs make it easy to link with data recorders or analysis equipment. The display is optimized for clarity, with built-in alarms to handle out-of-range values and low battery states. The option to mount it on a tripod enhances stability for precision measurement.

  • Dual Measurement Modes – Seamlessly switch between contact and non-contact RPM measurement within one device.

  • Extensive Measurement Range – Capable of handle extremely slow to ultra-high speeds, from 6 r/min up to 99,999 r/min.

  • Multiple Measurement Types – Supports RPM, rotations per second, line speed, cycle duration, and cumulative pulse count.

  • Line Speed Calculation – Calculates surface linear speed when configured with a known diameter and appropriate accessory.

  • Peak Hold & Memory – Captures maximum, minimum, and current values; stores up to 20 sets of data.

  • Analog & Pulse Outputs – Integrates with recording and analysis systems via customizable analog output and standard pulse signal.

  • Large Backlit Display – Offers high visibility with a 5-digit LED display and backlight for low-light environments.

  • Tripod Compatibility – Can be mounted for stationary or high-precision testing setups.

  • Auto Power & Alerts – Includes low battery alert, over-range error indicator, and upper-limit alarm for safety and reliability.

Specification Details
Measurement Methods Non-contact (reflective light), contact (adapter required)
Speed Range (RPM) Non-contact: 6 to 99,999 r/min (high range), 6.0 to 600.0 r/min (low range)
Contact: 6 to 20,000 r/min (high), 6.0 to 600.0 r/min (low)
Other Measurement Units r/s (rotations per second), m/min (line speed), ms (cycle time), COUNT (cumulative pulses)
Resolution Variable, depending on mode and accessory; generally 1 r/min
Detection Distance 20 to 300 mm
Measurement Time Within 1 s plus one rotation cycle; slower at very low speeds
Display 5-digit LED with backlight; ~10.2 mm character height
Accuracy ±0.02% of displayed value ±1 count (non-contact)
Peak/Min Hold Displays maximum, minimum, and current values
Memory Stores up to 20 measurement sets
Alarms Over-range error, upper-limit alert, low battery alert
Analog Output 0–1 V or full-scale configurable; 10-bit D/A; ±1% FS linearity
Pulse Output Positive logic; Hi ≥ 4.5 V, Lo ≤ 0.5 V
Power 4 × AAA batteries or optional AC adapter
Battery Life ≥ 32 hours (backlight off), ≥ 8 hours (backlight on)
Operating Temp 0 to 40 °C
Storage Temp –10 to 50 °C
Dimensions About 180.5 × 47.5 × 66 mm (without adapter), 237.2 mm when adapter attached
Weight ~267 g (without adapter), ~329 g (with adapter)
Included Accessories Contact adapter, contact tip, circumferential ring, reflective mark sheet, carrying case
