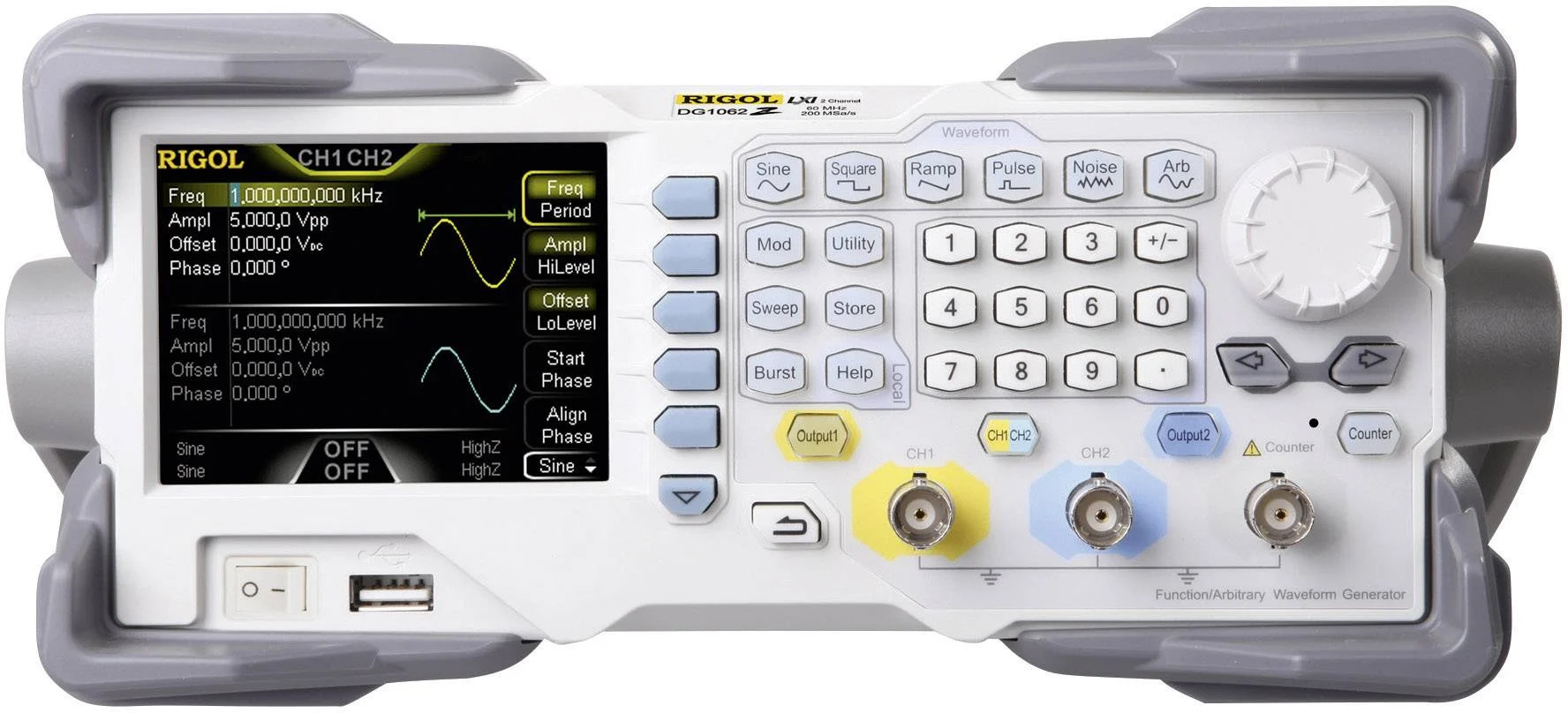

Rigol DG1032Z

Rs. 96465.00

High quality two channel function / arbitrary waveform generator with 30 MHz bandwidth, 200 MSa/s and 8 Mpts memory (up to 16Mpts as option). Now includes NABL Calibration Certificate. 3 years warranty.

  • Detail
  • Special Features
  • Specification

The Rigol DG1032Z is a high-quality two-channel function and arbitrary waveform generator designed for both educational and professional use. This generator is capable of producing high-quality signals up to 30 MHz in frequency (sine wave). It features 200 MSa/s sample rate and 8 Mpts memory, which can be upgraded to 16 Mpts. It employs SiFi (Signal Fidelity) technology for high signal quality, delivering very low jitter (200 ps). The DG1032Z is equipped with an NABL Calibration Certificate and comes with a 3-year warranty.

The device features two independent channels, each capable of generating a wide range of signals with precise control over parameters such as frequency, amplitude, phase, and offset. Its intuitive color display and graphical interface make setup and operation seamless, while its wide range of modulation, waveform summing, and frequency counter functions add to its versatility.

  • Dual-Channel Operation: Two independent, phase-synchronized channels allowing for true dual-channel signal generation.

  • Signal Fidelity (SiFi) Technology: Ensures high signal accuracy with minimal jitter (200 ps).

  • Wide Frequency Range: Capable of generating signals up to 30 MHz (Sine Wave).

  • High Sample Rate: 200 MSa/s sample rate for precise signal reproduction.

  • Memory Depth: 8 Mpts (expandable to 16 Mpts) for capturing more waveform data.

  • Pre-Defined Waveforms: Includes 160 pre-defined waveforms for quick signal generation.

  • Arbitrary Waveform Generation: Can generate nearly any waveform with customizable parameters.

  • Independent Modulation: Analog and digital modulations can be generated simultaneously from both channels.

  • Harmonic Signal Generation: Capable of generating harmonic overtone signals up to the 8th order with adjustable parameters such as frequency, amplitude, and phase.

  • Frequency Counter: High-resolution frequency counter, measuring from 1 µHz to 200 MHz.

  • Waveform Summing: Allows the summing of multiple basic waveforms with different signal forms, amplitude ratios, and frequencies.

  • Frequency Sweep: Can cycle through a defined frequency range with constant amplitude, outputting basic waveforms like sine, square, ramp, and arbitrary signals.

  • USB Connectivity: Includes USB-host and USB-device interfaces for external connections.

General Specifications:

  • Model: DG1032Z

  • Channels: 2 independent, synchronized analog channels

  • Display: 3.5" color display, 320x240 resolution

  • Sample Rate: 200 MSa/s

  • Memory: 8 Mpts (expandable to 16 Mpts)

  • Frequency Resolution: 1 µHz

  • Frequency Range: 30 MHz (Sine)

  • Modulation: Independent analog and digital modulation for both channels

  • Harmonic Signals: Generates up to the 8th harmonic

  • Waveform Generation: 160 pre-defined waveforms + arbitrary signal generation

  • Sweep Functions: Frequency, amplitude sweep with sine, square, ramp, and arbitrary signals

  • Waveform Summing: Combining different waveforms with adjustable parameters

  • Signal Fidelity (SiFi) Technology: Low jitter, high accuracy

  • Frequency Counter: Measures frequency, period, pulse width, and duty cycle from 1 µHz to 200 MHz

  • Connectivity: USB-host and USB-device interfaces

Performance Specifications:

  • Bandwidth: 30 MHz

  • Resolution Bandwidth (RBW): 10 Hz – 10 MHz (with 1 Hz option)

  • Amplitude: 1 µV to 20 Vpp

  • Frequency Range: 1 µHz to 30 MHz

  • Jitter: 200 ps

  • Harmonics Generation: Up to 8th order (even, odd, all, or user-defined harmonics)

  • Output Impedance: 50 Ω (Standard)

Sweep and Modulation:

  • Sweep Mode: Linear or logarithmic

  • Modulation Types: AM, FM, PM, PWM, and arbitrary modulation options

  • Frequency Sweep: Full span sweep with 1 ms full span speed

Environmental & Physical:

  • Power Supply: 100–240 V AC, 50/60 Hz

  • Dimensions: 290 mm × 148 mm × 350 mm

  • Weight: 3.5 kg

  • Temperature Range: 0°C to 50°C operating

Warranty:

  • 3-year warranty included
