Waveform Generators

Rigol DG2072

Rs. 101775.00

High quality two channel function / arbitrary waveform generator with 70 MHz bandwidth, 250 MSa/s and 16 Mpts memory. 3 years warranty.

  • Detail
  • Special Features
  • Specification

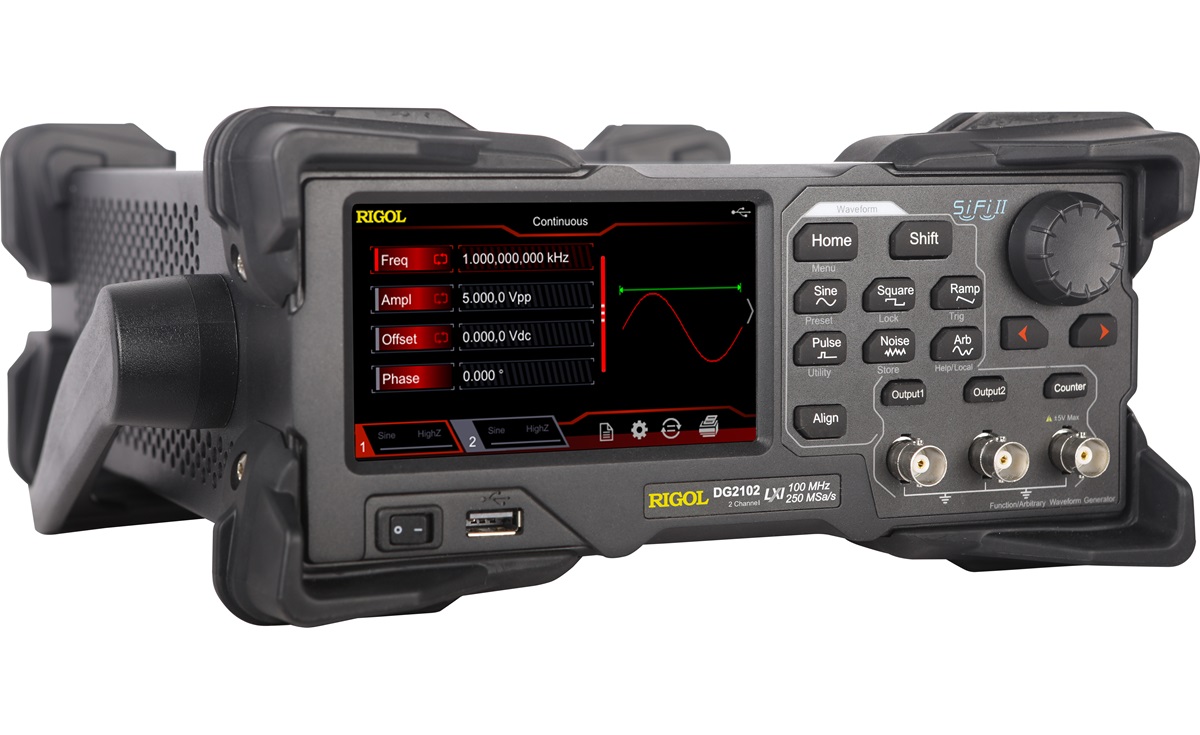

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the Rigol DG2052 generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the Rigol DG2052 reproduces any waveform with high signal fidelity.

SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.

The intuitive touchscreen control make it the perfect choice for your desk, bench, or lab.

Model DG2052 DG2072 DG2102
Max. Frequency 50 MHz 70 MHz 100 MHz
Resolution 1 µHz 1 µHz 1 µHz
Sample rate 250 MSa/s 250 MSa/s 250 MSa/s
vertical resolution 16 bits 16 bits 16 bits
Max Amplitude 2.5 Vpp < 60 MHz 1 Vpp < 60 MHz 1 Vpp < 60 MHz
Frequency Counter up to 240 MHz up to 240 MHz up to 240 MHz
Channels 2 2 2

  • 70 MHz bandwidth for precise signal generation

  • 250 MSa/s sample rate for high resolution and accuracy

  • 16 Mpts memory, allowing for longer waveform generation without loss of signal quality

  • SiFi II technology for superior signal fidelity

  • User-friendly interface with touchscreen control

  • Multiple waveform generation modes, including sine, square, triangle, and arbitrary waveforms

  • Frequency counter feature up to 240 MHz

  • Harmonic signal generation up to the 8th order

  • Support for digital and analog modulation functions



  • Max Frequency: 70 MHz

  • Sample Rate: 250 MSa/s

  • Resolution: 1 µHz

  • Vertical Resolution: 16 bits

  • Memory: 16 Mpts

  • Frequency Counter: Up to 240 MHz

  • Channels: 2

  • Max Amplitude: 1 Vpp < 60 MHz

  • Interfaces: USB, LAN, GPIB

  • Dimensions: 410 mm x 210 mm x 135 mm

  • Weight: 4.2 kg
