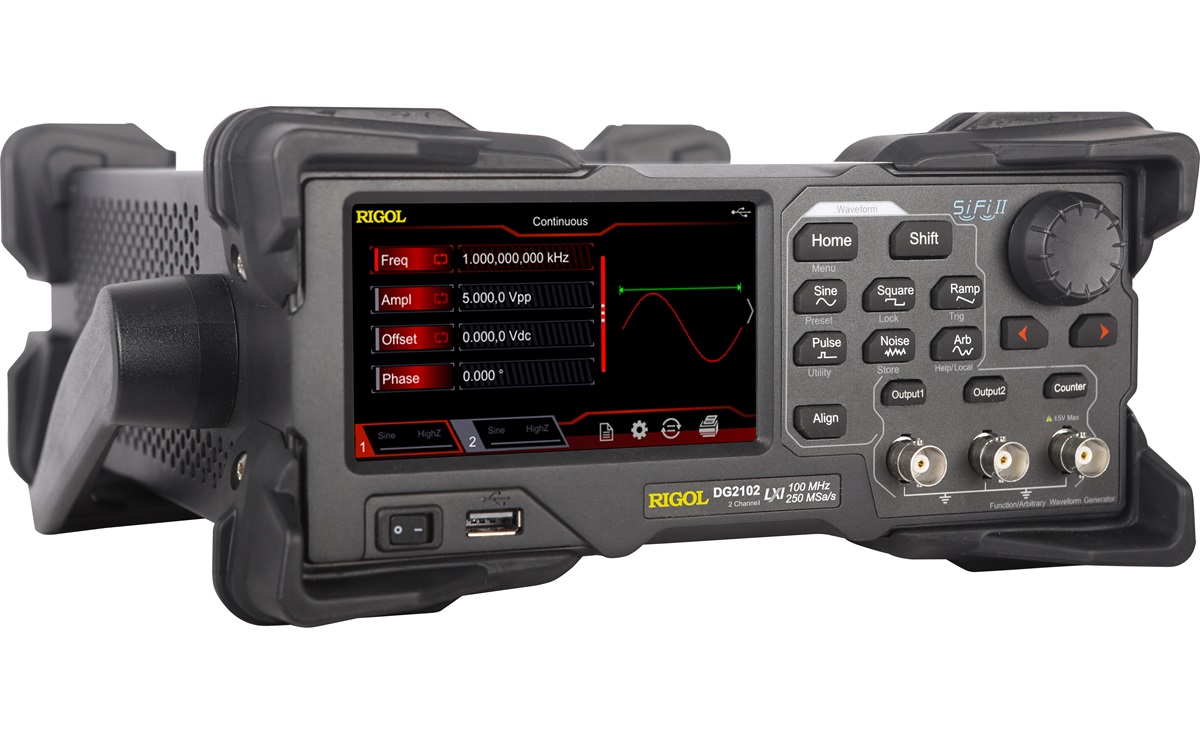

Image 1
Image 2

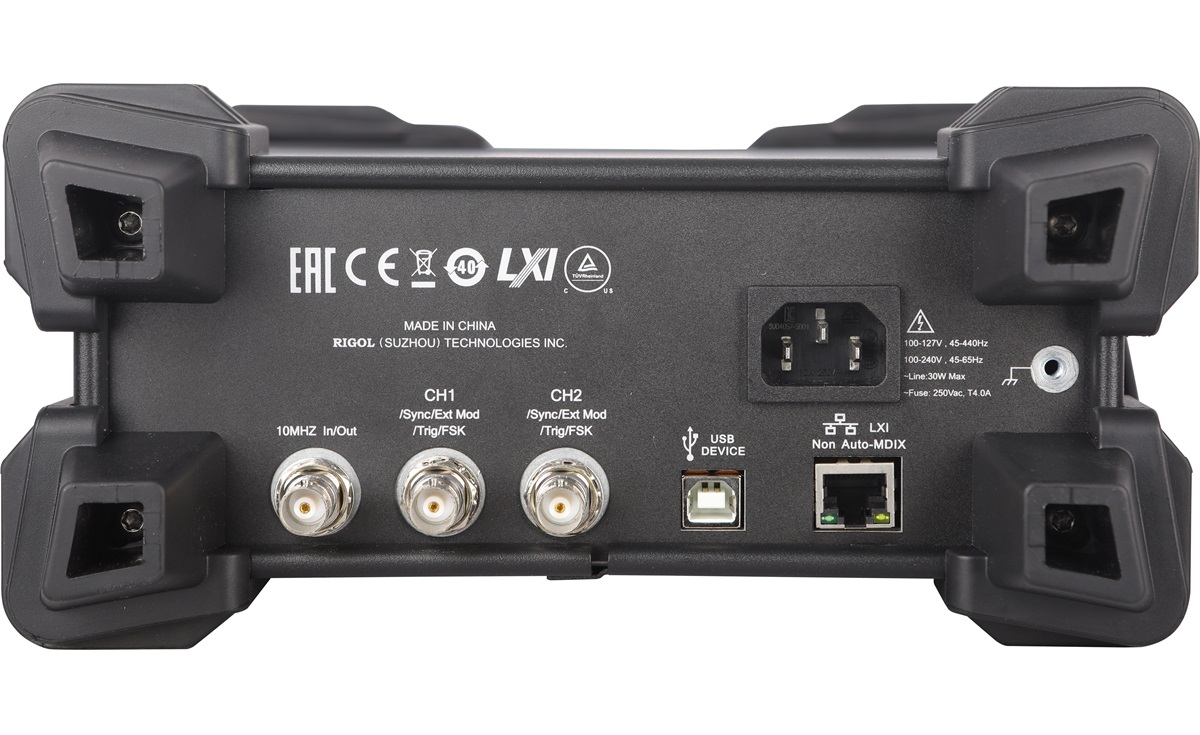

Image 3
Waveform Generators

Rigol DG2102

Now includes NABL Calibration Certificate.
Rs. 127263.00

The Rigol DG2052 is a two-channel function/arbitrary waveform generator with a 100 MHz bandwidth, 250 MSa/s sample rate, and 16 Mpts memory. It offers high signal fidelity with 16-bit resolution and advanced SiFi II filtering for accurate waveform reproduction. The intuitive touchscreen interface makes it perfect for lab and bench applications..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the Rigol DG2052 generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the Rigol DG2052 reproduces any waveform with high signal fidelity.

SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.

The intuitive touchscreen control make it the perfect choice for your desk, bench, or lab.

Model DG2052 DG2072 DG2102
Max. Frequency 50 MHz 70 MHz 100 MHz
Resolution 1 µHz 1 µHz 1 µHz
Sample rate 250 MSa/s 250 MSa/s 250 MSa/s
vertical resolution 16 bits 16 bits 16 bits
Max Amplitude 2.5 Vpp < 60 MHz 1 Vpp < 60 MHz 1 Vpp < 60 MHz
Frequency Counter up to 240 MHz up to 240 MHz up to 240 MHz
Channels 2 2 2

  1. High Signal Fidelity: Offers accurate waveform reproduction with 16-bit vertical resolution.

  2. SiFi II Technology: Improved filtering for superior signal quality.

  3. Dual Channels: Provides two independent channels for generating simultaneous signals.

  4. Intuitive Touchscreen Control: User-friendly interface for easy setup and operation.

  5. Wide Bandwidth: Up to 100 MHz for demanding signal generation tasks.

  6. Large Memory: 16 Mpts memory to capture detailed waveform data.

  7. Frequency Counter: Measures frequencies up to 240 MHz, providing enhanced measurement capabilities.

  • Model Options:

    • DG2052: Max Frequency 50 MHz, 2.5 Vpp

    • DG2072: Max Frequency 70 MHz, 1 Vpp

    • DG2102: Max Frequency 100 MHz, 1 Vpp

  • Resolution: 1 µHz for precise frequency control.

  • Sample Rate: 250 MSa/s, offering high-speed waveform generation.

  • Vertical Resolution: 16 bits for detailed and accurate waveform representation.

  • Frequency Counter: Up to 240 MHz, suitable for advanced frequency measurement tasks.

  • Channels: 2 channels, with independent operation or synchronized output.

  • Amplitude (Max): 2.5 Vpp for DG2052 < 60 MHz, 1 Vpp for others.

  • Display: High-resolution touchscreen interface for easy control and monitoring.
