Waveform Generators

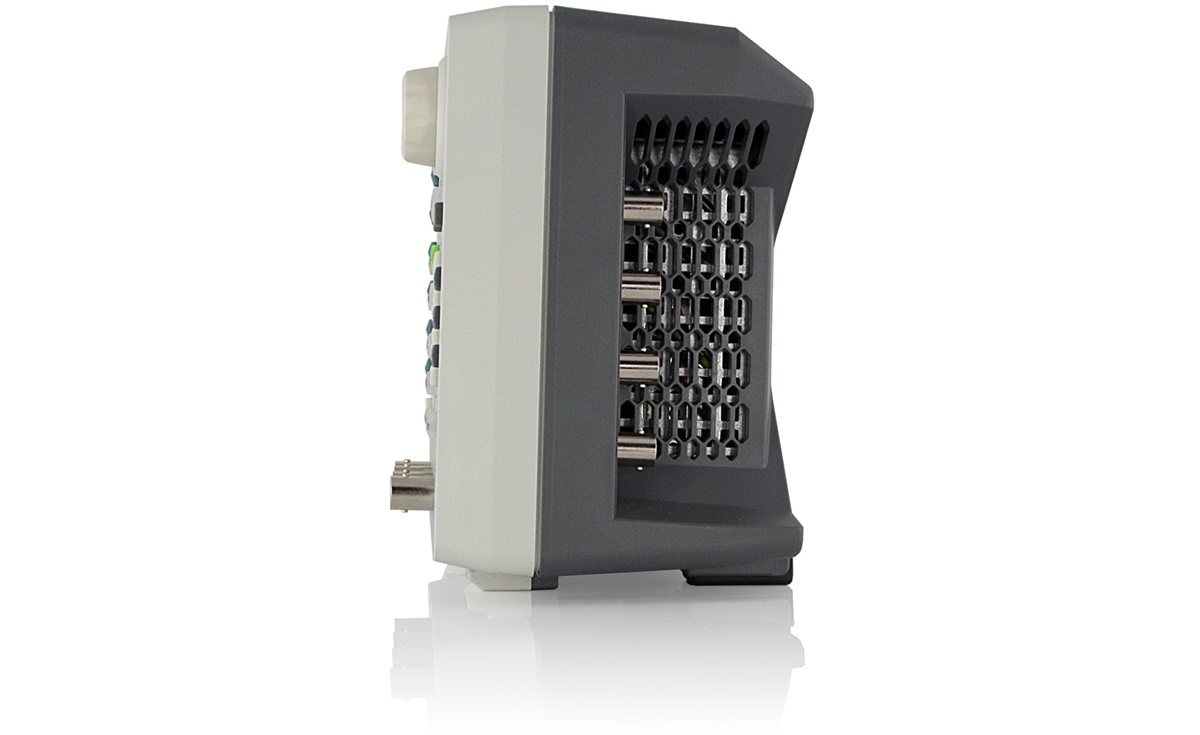

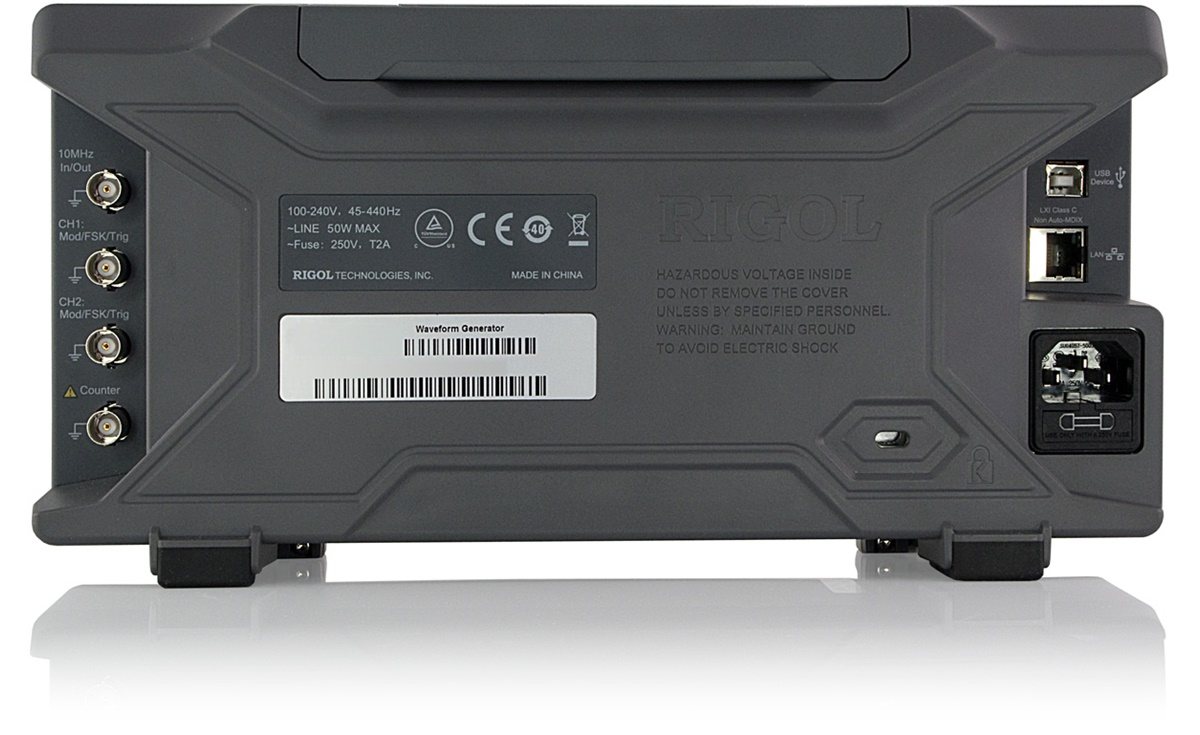

Rigol DG4102

Rs. 115935.00

The Rigol DG4102 is a high-quality two-channel function/arbitrary waveform generator offering 100 MHz bandwidth, 500 MSa/s sample rate, and 16 kpts memory. It provides precise signal generation for a wide range of applications and includes USB and LAN interfaces for easy connectivity. With a user-friendly interface and intuitive menu navigation, the DG4102 is ideal for both bench and field use. Backed by a 3-year warranty, it is a reliable choice for signal testing and electronics development..

  • Detail
  • Special Features
  • Specification

✨ What It Does
Generates clean, precise signals → lab or field → results you can trust.

⚡ Core Performance
100 MHz bandwidth → fast signals stay sharp.
500 MSa/s sample rate → tiny time steps → accurate shapes.
16 kpts memory → store complex waves → replay without hiccups.

🧑‍🤝‍🧑 Dual-Channel Power
Two independent outputs → sync or run solo → drive differential pairs or multiple parts at once.

🎛 Waveforms You Need
Sine, square, triangle → quick basics.
Arbitrary waveforms → custom shapes → match real-world signals.

🧪 Where It Fits
Analog circuits → verify gain and phase.
RF devices → stimulate front-ends cleanly.
Embedded systems → clock, modulate, and stress inputs.

🖥 Easy Control
Clear UI → quick tweaks → less menu hunting.
USB + LAN → script it, automate it, move data fast.

⚡ Bandwidth
100 MHz → fast signals → clean shapes for high-performance tests.

⏱️ Sample Rate
500 MSa/s → small time steps → accurate waveform creation.

🧠 Memory
16 kpts depth → store wave data → replay without hiccups.

🎛️ Function & ARB
Built-in functions + arbitrary waveforms → one box, many shapes → fewer tools needed.

🔌 Connectivity
USB-Host + USB-Device + LAN → plug in, script, and share → easy fit in test rigs.

🎯 Frequency Resolution
1 µHz steps → fine tuning → precise setpoints that hold.

🧑‍🤝‍🧑 Dual Channels
Two outputs → run in sync or solo → test multi-part systems faster.

🖥️ Intuitive Interface
Graphical display + simple menus → quick tweaks → less menu hunting.

📐 Flexible Generation
Sine, square, triangle, plus ARB → standard tests and custom cases → covered.

🛡️ Warranty
3-year coverage → long-term reliability → lower risk on the bench.

  • Model: DG4102

  • Max. Frequency: 100 MHz

  • Max. Sample Rate: 500 MSa/s

  • Channels: 2

  • Resolution: 1 µHz

  • Memory Depth: 16 kpts

  • Interfaces: USB-Host, USB-Device, LAN

  • Bandwidth: 100 MHz

  • Waveform Types: Sine, Square, Triangle, Arbitrary

  • Warranty: 3 Years

Model Overview

Model Max. Frequency Max. Sample Rate Channels
DG4062 60 MHz 500 MSa/s 2
DG4102 100 MHz 500 MSa/s 2
DG4162 160 MHz 500 MSa/s 2
DG4202 200 MHz 500 MSa/s 2



Price

  • ₹60,000.00

  • ₹70,800.00 (Including 18% GST)

The Rigol DG4102 is an excellent choice for engineers and technicians needing a reliable and versatile waveform generator. It delivers precise signal generation with 100 MHz bandwidth, 500 MSa/s sample rate, and easy connectivity options. Its user-friendly interface and advanced features make it an essential tool for RF testing, circuit design, and signal analysis.
