Waveform Generators

Rigol DG4202

Rs. 212400.00

The Rigol DG4202 is a high-quality two-channel function/arbitrary waveform generator with 200 MHz bandwidth, 500 MSa/s sample rate, and 16 Mpts memory. It offers precise waveform generation and advanced modulation capabilities, featuring an intuitive graphical interface for ease of use..

  • Detail
  • Special Features
  • Specification

The Rigol DG4202 is a versatile waveform generator that delivers high signal fidelity, offering a frequency range of up to 200 MHz (Sine) and a sample rate of 500 MSa/s. Its advanced SiFi II technology ensures low jitter and exceptional signal accuracy. The device features two independent channels that can be synchronized, allowing for the simultaneous generation of both analog and digital waveforms.

The 7" display with a resolution of 800 x 480 pixels provides a clear view of both channels and allows users to adjust parameters effortlessly using the intuitive graphical interface. Additionally, the DG4202 supports various modulation functions, harmonic signal generation, and sweep capabilities, making it ideal for complex waveform applications.

  • Dual-channel synchronization: Both channels can be synchronized phase-dependently, turning the device into a true dual-channel generator.

  • Arbitrary signal generation: Capable of reproducing almost any waveform with 150 pre-defined waveforms.

  • Analog and digital modulation: Supports both types of modulation, making it ideal for complex applications.

  • Harmonic signals: Capable of generating harmonic overtone signals up to the 16th order with adjustable frequency, amplitude, and phase.

  • High-resolution frequency counter: Measures frequencies, period, pulse length, and duty cycle, from 1 µHz to 200 MHz.

  • Frequency counter with statistics: Features a history and statistics function to detect and visualize signal changes over time.

  • Max Frequency: 200 MHz (Sine)

  • Max Sample Rate: 500 MSa/s

  • Resolution: 1 µHz

  • Channels: 2

  • Display: 7" TFT color display, 800 x 480 pixels

  • Memory: 16 Mpts (Optional expansion to 32 Mpts)

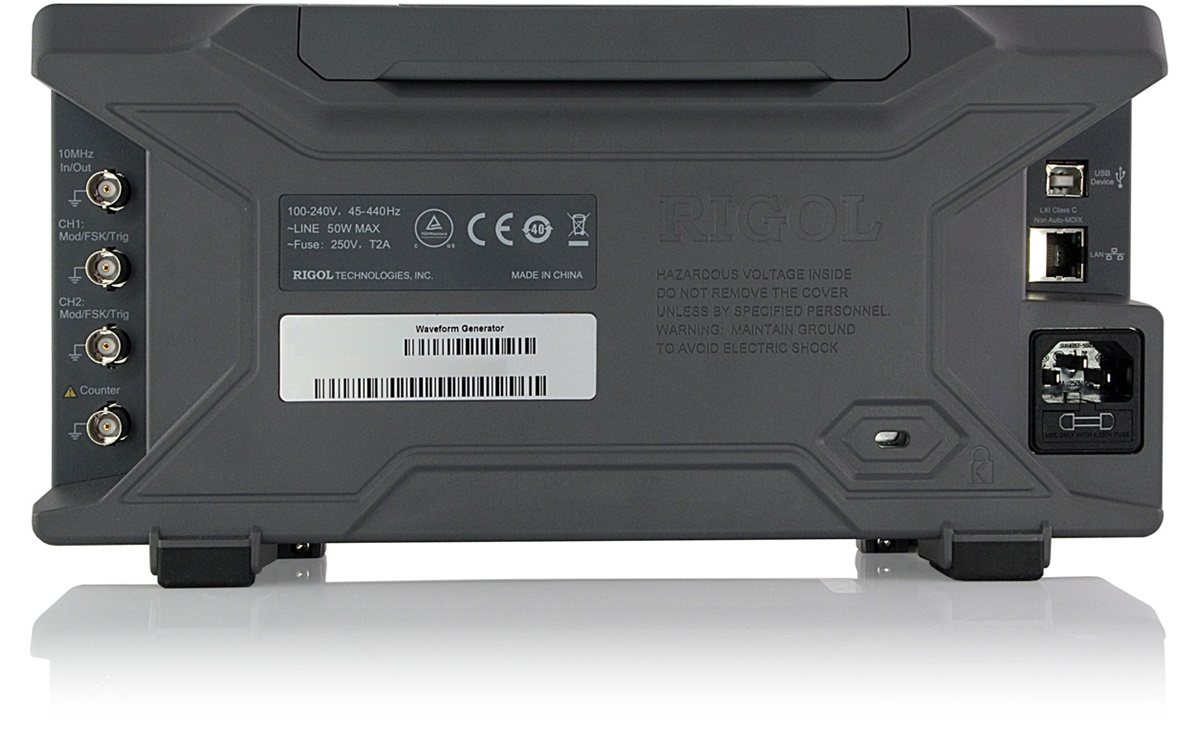

  • Interfaces: USB-Host, USB-device, LAN

  • Waveform Types: Sine, Square, Ramp, Arbitrary, Pulse, and Harmonics up to the 16th order

  • Counter: High-resolution frequency counter (1 µHz to 200 MHz)

Model Overview Comparison:

Model Max Frequency Max Sample Rate Resolution Channels
DG4062 60 MHz 500 MSa/s 1 µHz 2
DG4102 100 MHz 500 MSa/s 1 µHz 2
DG4162 160 MHz 500 MSa/s 1 µHz 2
DG4202 200 MHz 500 MSa/s 1 µHz 2



Warranty: 3 years

This generator is ideal for use in a variety of testing and measurement environments, including research, development, and educational purposes. The Rigol DG4202 provides exceptional waveform accuracy, modulation flexibility, and ease of use, making it a valuable tool for engineers and technicians.
