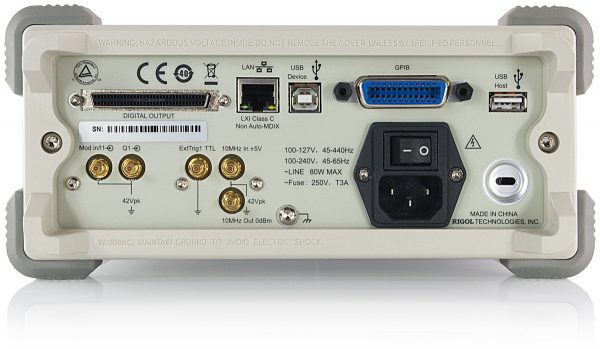

Image 3
Waveform Generators

Rigol DG5101

Rs. 520203.00

High-quality one-channel function/arbitrary waveform generator with 100 MHz bandwidth, 1 GSa/s, and 128 Mpts memory. 3 years warranty.

  • Detail
  • Special Features
  • Specification

What it is

  • Function and arbitrary waveform generator for lab tests.

  • Sine output up to 100 MHz for clean signals.

Signals you can make

  • Sine, square, pulse, ramp, and custom arbitrary waves.

  • Build odd shapes and repeat them reliably.

Modulation and IQ

  • Add AM, PWM, FSK, and IQ modulation quickly.

  • Map IQ constellations with a simple editor.

Speed and depth

  • 1 GSa/s sample rate for sharp edges.

  • 128 Mpts memory for long or complex patterns.

Bursts, sweeps, and hopping

  • Fire timed bursts on trigger.

  • Sweep frequency or level to check responses.

  • Use the frequency hopping option to jump bands.

Display and control

  • Clear graphical UI for fast setup.

  • Save presets and recall jobs without fuss.

Connect and automate

  • USB host and USB device on board.

  • RS-232, LAN, and GPIB for ATE rigs.

  • Script with SCPI and log results from a PC.

Systems and use

  • Works with Windows XP, Vista, and 7, both 32 and 64 bit.

  • Fits R&D benches, production lines, and service labs.

Modulation Options

  • Generate AM, PWM, FSK, and IQ signals.

  • Switch modes fast to match your test.

IQ Tools

  • Edit IQ maps with a simple editor.

  • Pick constellations and apply quickly.

Bursts and Sweeps

  • Fire clean bursts on cue.

  • Sweep frequency or level for response checks.

Frequency Hopping

  • Add hopping with the software option.

  • Jump across bands to stress receivers.

Deep Memory

  • Use 128 Mpts to store long waveforms.

  • Play complex patterns without gaps.

High Sample Rate

  • Sample at 1 GSa/s for crisp edges.

  • Keep fidelity high at faster speeds.

Interfaces

  • Connect by USB, LAN, or GPIB.

  • Script with SCPI and log results easily.

Design and Use

  • Compact body saves bench space.

  • Clear UI helps you set and run tests fast.

  • Model: DG5101

  • Channels: 1

  • Signal Output: Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary waveforms, freely definable arbitrary waveforms, Noise

  • Vertical Resolution: 14-bit

  • Amplitudes: 5 mVpp to 10 Vpp (50 Ω)

  • DC Offset: ±5 V (50 Ω)

  • Sample Rate: 1 GSa/s

  • Frequency Range:

    • Sine: 1 µHz – 100 MHz

    • Rectangle: 1 µHz – 100 MHz

    • Pulse: 1 µHz – 50 MHz

    • Ramp: 1 µHz – 3 MHz

    • Arbitrary: 1 µHz – 50 MHz

    • Noise: 100 MHz (-3db)

  • Resolution: 1 µHz

  • Display: 4.3″ TFT LCD with 16M true color (480 × 272 pixels)

  • Interfaces:

    • USB-Host (for USB stick to save/load waveforms)

    • USB for PC connection

    • LAN

    • GPIB (IEEE-488)

  • Dimensions (W × H × D): 263 mm × 107 mm × 505 mm (10.35″ × 4.21″ × 19.88″)

  • Weight: 4.3 kg (9.48 lbs)

  • Supported Operating Systems: Windows XP (32/64-bit), Vista (32/64-bit), Windows 7 (32/64-bit)
