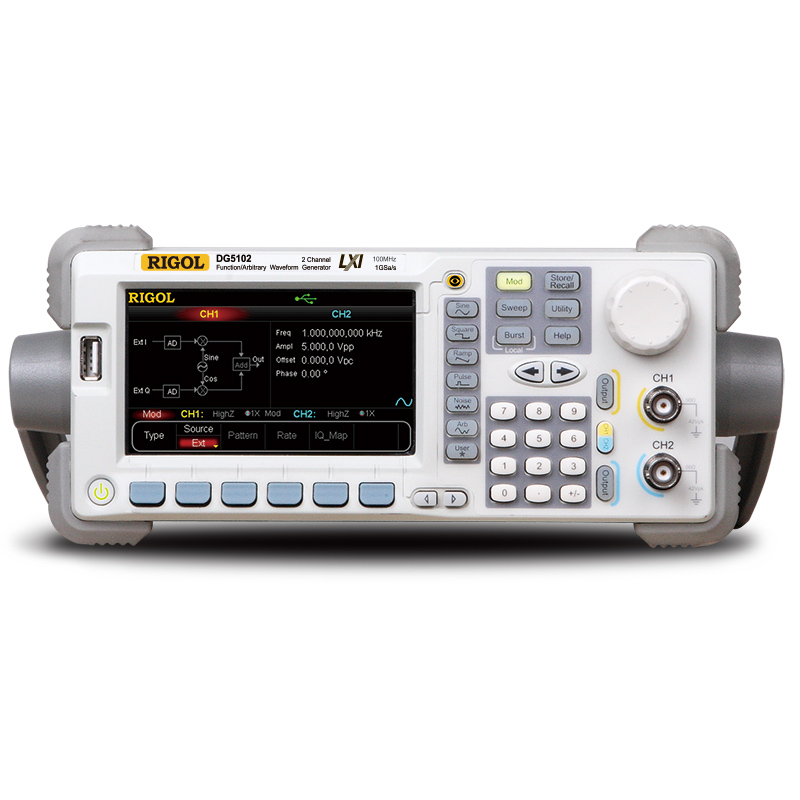

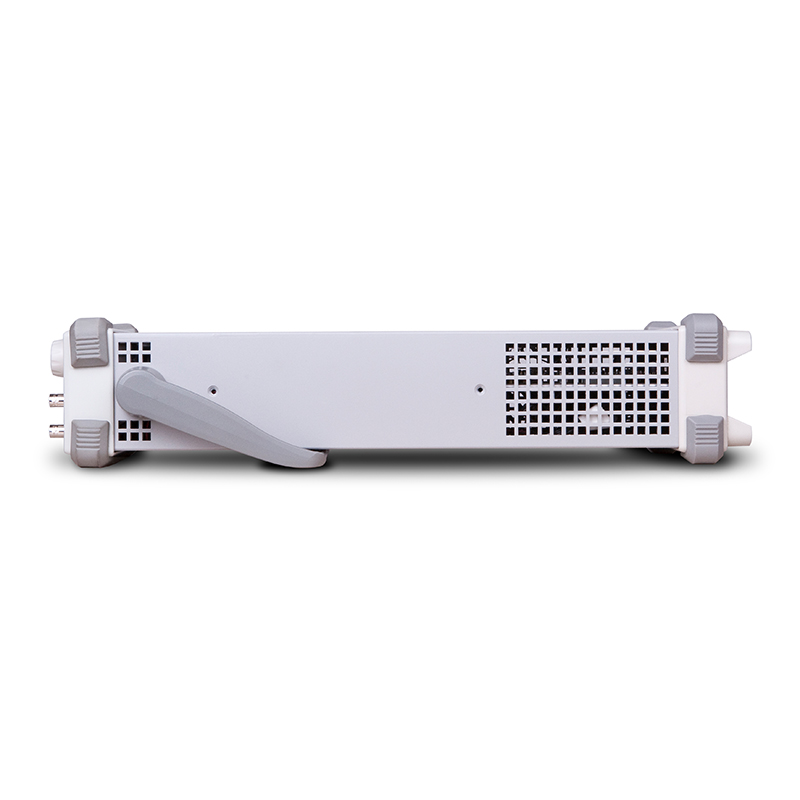

Rigol DG5102

Now includes NABL Calibration Certificate.
Rs. 624102.00

High quality two-channel function/arbitrary waveform generator with 100 MHz bandwidth, 1 GSa/s sample rate, and 128 Mpts memory. 3 years warranty.

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

What it is

  • Two-channel function/arbitrary waveform generator.

  • Sine output up to 100 MHz for clean, stable signals.

Channels and signals

  • Drive two outputs independently or in sync.

  • Generate sine, square, pulse, ramp, and custom arbitrary waves.

Output quality

  • Analog outputs with precise control of frequency, amplitude, and offset.

  • Keep phase aligned for mixed-signal tests.

Interfaces

  • Plug in fast: USB host and USB device.

  • Connect to racks: RS-232, LAN, and GPIB.

  • Script with SCPI and log results from a PC.

Display and control

  • Simple menu system for quick setup.

  • Pick a function, set the value, press run.

Use in the lab

  • Feed prototypes, stimulate filters, clock digital boards.

  • Build repeatable test routines for R&D and production.

Why it helps

  • Two channels cut extra gear.

  • Clear UI shortens setup.

  • Broad I/O fits any bench or ATE.

AM Modulation

  • Add a simple amplitude change to your carrier.

  • Test receivers for level swings and envelope tracking.

PWM Modulation

  • Vary pulse width to encode data or control power.

  • Check drivers and control loops under real duty cycles.

FSK Modulation

  • Switch between two frequencies to send bits.

  • Validate demodulators for clean, quick hops.

IQ Modulation

  • Shape I and Q to build complex constellations.

  • Stress modern radios with realistic baseband.

IQ Mapping Editor

  • Draw or load symbol maps fast.

  • Tweak points and save sets for reuse.

IQ Mapping Selection

  • Pick QPSK, QAM, or custom maps in one step.

  • Swap constellations mid-test without rework.

Burst Function

  • Fire short, timed packets on trigger.

  • Measure startup, settling, and transient behavior.

Sweep Function

  • Sweep frequency or amplitude across a range.

  • Plot system response and find resonances.

Frequency Hopping (Option)

  • Jump bands per a set pattern.

  • Test tracking, lock time, and interference handling.

  • Channels: 2

  • Signal Output: Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary waveforms, freely definable arbitrary waveforms, Noise

  • Vertical Resolution: 14-bit

  • Amplitude Range: 5 mVpp ~ 10 Vpp (50 Ω)

  • DC Offset: ±5 V (50 Ω)

  • Sample Rate: 1 GSa/s

  • Frequency Range:

    • Sine: 1 µHz – 100 MHz

    • Rectangle: 1 µHz – 40 MHz

    • Pulse: 1 µHz – 15 MHz

    • Ramp: 1 µHz – 2 MHz

    • Arbitrary: 1 µHz – 15 MHz

    • Noise: 100 MHz (-3 dB)

  • Resolution: 1 µHz

  • Display: 4.3” TFT LCD with 16 million true colors, 480 × 272 pixels

  • Interfaces:

    • USB-Host (for USB stick, i.e., to save/load waveforms)

    • USB for a PC connection

    • LAN for network connection

    • GPIB (IEEE-488, General Purpose Interface Bus)

  • Dimensions: 263 mm × 107 mm × 505 mm (10.35” × 4.21” × 19.88”)

  • Weight: 4.3 kg (9.48 lbs)

  • Supported Operating Systems: Windows XP (32/64 bit), Vista (32/64 bit), Windows 7 (32/64 bit)
