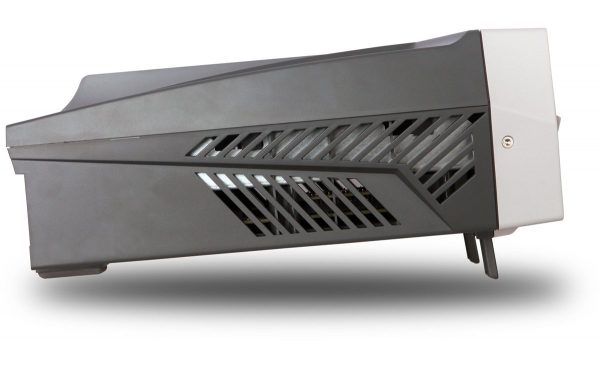

Image 3
Waveform Generators

Rigol DG831

Now includes NABL Calibration Certificate.
Rs. 53277.00

High-quality single-channel function/arbitrary waveform generator with 35 MHz bandwidth, 125 MSa/s sample rate, and 2 Mpts memory (upgradable to 8Mpts). Includes NABL Calibration Certificate and a 3-year warranty..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The DG800 series waveform generator offers a powerful yet affordable option for engineers and students. With a 16-bit vertical resolution, the DG800 series delivers high-precision output across a broad frequency range (up to 35 MHz). The generator supports various models such as the DG811 (10 MHz, single channel) and DG832 (35 MHz, dual channel), catering to different requirements for waveform generation and testing.

It provides 2 Mpts standard memory and can be upgraded to 8 Mpts for users requiring deep signal analysis. This generator is equipped with SiFi II point-to-point sampling technology, ensuring high fidelity in signal generation and measurement. The NABL Calibration Certificate guarantees traceability and the device's compliance with national standards, making it ideal for laboratory and educational use.

The DG800 series features an intuitive touchscreen control, making operation smooth and user-friendly. A quiet fanless design ensures noise-free performance, ideal for sensitive applications in testing environments. The generator’s capability to measure up to 240 MHz frequency offers excellent flexibility for a wide range of testing applications.

  • Advanced Capabilities – 16-bit high-resolution output for precise signal generation.

  • Intuitive Touchscreen Control – Easy-to-use interface for seamless operation.

  • Quiet Fanless Design – Noise-free operation for clean and stable signal output.

  • SiFi II Point-to-Point Sampling – Advanced sampling technology for high-quality signal generation.

  • Wide Frequency Range – Up to 35 MHz, suitable for various applications.

  • High Amplitude – 10 Vpp maximum amplitude at frequencies below 10 MHz.

  • Frequency Counter – Measures frequencies up to 240 MHz, enhancing testing precision.

  • Large Memory Depth – 2 Mpts of standard memory, upgradable to 8 Mpts for deep signal storage.

  • Long Warranty – Includes 3 years warranty for added peace of mind.

  • Versatile Models – Available in single and dual-channel configurations for flexible applications.

General Data

Display: LCD
Channels: 1 (or 2 depending on the model)
Warranty: 3 years
Price: ₹53,277.00 Inc. 18% GST
Max Frequency: 10 MHz to 35 MHz depending on the model
Resolution: 1 µHz
Sample Rate: 125 MSa/s
Amplitude: 10 Vpp below 10 MHz
Frequency Counter: Up to 240 MHz
Memory Depth: 2 Mpts (expandable to 8 Mpts)

Model Overview

Model Max Frequency Channels Resolution Sample Rate Max Amplitude
DG811 10 MHz 1 16 bits 125 MSa/s 10 Vpp < 10 MHz
DG812 10 MHz 2 16 bits 125 MSa/s 10 Vpp < 10 MHz
DG821 25 MHz 1 16 bits 125 MSa/s 10 Vpp < 10 MHz
DG822 25 MHz 2 16 bits 125 MSa/s 10 Vpp < 10 MHz
DG831 35 MHz 1 16 bits 125 MSa/s 10 Vpp < 10 MHz
DG832 35 MHz 2 16 bits 125 MSa/s 10 Vpp < 10 MHz
